Our Drone Fleet

---

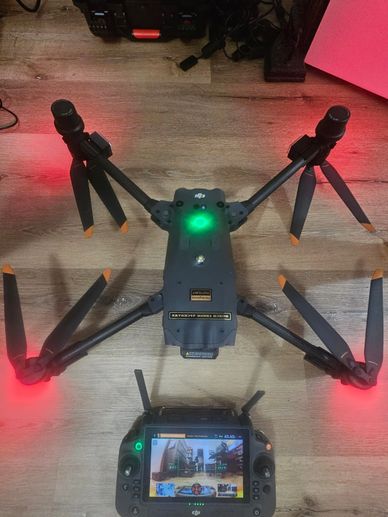

“Borch Three Jackdaws” (Borch) is our DJI Matrice 30T (M30T).  He is our flagship portable enterprise drone, purpose-built for demanding professional applications in Huntsville/Madison and across the Southeast. Combining a lightweight, foldable design with a powerful hybrid multi-sensor payload (wide-angle, zoom, radiometric thermal, and laser rangefinder), it delivers exceptional performance in visual inspections, thermal imaging, mapping, search-and-rescue (SAR), public safety, and more. Its IP55 weather resistance, wide operating temperature range, and advanced autonomy features make it reliable even in challenging Alabama conditions—rain, dust, extreme heat, or cold.

Key Aircraft & Flight Performance Specs

• Dimensions:      Unfolded (excl. propellers): 470 × 585 × 215 mm; Folded: 365 × 215 × 195      mm (highly portable for rapid deployment).
• Weight:      3,770 g (incl. two TB30 batteries); Max takeoff weight: 4,069 g.
• Flight      Time: Up to 41 minutes (max hover time: 36 minutes).
• Max      Speed: 23 m/s (≈ 51 mph).
• Wind      Resistance: 12 m/s.
• Service      Ceiling: 5,000 m (standard propellers) or 7,000 m (high-altitude      propellers).
• Operating      Temperature: -20°C to 50°C (–4°F to 122°F).
• Ingress      Protection: IP55 (dust- and water-resistant).
• Positioning:      RTK-enabled GNSS (GPS + Galileo + BeiDou + GLONASS) for centimeter-level      accuracy (1 cm + 1 ppm horizontal / 1.5 cm + 1 ppm vertical).
• Obstacle      Sensing: 6-directional vision + ToF sensors for omnidirectional      avoidance.
• Transmission:      OcuSync 3 Enterprise (up to 15 km FCC line-of-sight); supports 4G cellular      dongle backup.
• Remote      Controller: DJI RC Plus with Pilot 2 app; compatible with DJI      FlightHub 2 for cloud mission planning and data management.

Advanced Hybrid Sensor Payload (M30T-Specific)

The M30T’s stabilized gimbal integrates four high-performance sensors in one compact unit:

• Wide      Camera: 12 MP 1/2″ CMOS sensor, 24 mm equivalent focal length, 84°      DFOV, 4K/30 fps video. Perfect for contextual overviews and mapping.
• Zoom      Camera: 48 MP 1/2″ CMOS sensor, 5x–16x optical zoom (21–75 mm,      equivalent 113–405 mm), up to 200x hybrid zoom, 8K photos, 4K/30 fps      video. Ideal for detailed close-up inspections without getting close.
• Radiometric      Thermal Camera (exclusive to 30T): Uncooled VOx microbolometer, 640 ×      512 @30 fps (super-resolution mode up to 1,280 × 1,024), 40 mm equivalent      focal length, NETD ≤50 mK. Temperature measurement range: –20° to 150°C      (high gain) or 0° to 500°C (low gain); accuracy ±2°C or ±2%. Supports      spot/area metering, isotherms, temperature alerts, and multiple palettes      (White Hot, Iron Red, Rainbow, etc.). Critical for detecting electrical      faults, heat leaks, missing persons, or wildlife.
• Laser      Rangefinder: 3–1,200 m range, ±(0.2 m + D × 0.15%) accuracy. Provides      precise distance and location data for measurements and targeting.
• FPV      Camera: 1,920 × 1,080 @30 fps, 161° DFOV (low-light optimized for safe      piloting).

Gimbal Performance: ±0.01° angular vibration range; controllable tilt –120° to +45° for versatile angles.

Service Capabilities & Applications at Madison Drone Operations

We leverage the Matrice 30T to deliver high-value, data-driven drone services with unmatched efficiency and safety:

• Infrastructure & Utility Inspections — High-resolution zoom + thermal for power      lines, cell towers, bridges, pipelines, solar farms, and wind turbines.      Detect hotspots, corrosion, or structural issues quickly and safely.
• Search & Rescue / Public Safety — Radiometric thermal imaging excels in      low-light, nighttime, or dense foliage operations (e.g., lost persons,      disaster response, law enforcement overwatch). Laser rangefinder aids      precise coordinate reporting.
• Thermal & IR Surveys — Pinpoint energy loss, HVAC inefficiencies, roof      leaks, or equipment failures with accurate temperature data.
• Construction, Mapping & Surveying — RTK precision + wide/zoom cameras for      progress monitoring, volumetric measurements, and orthomosaic mapping.
• Emergency Response & Asset Management — Rapid deployment with hot-swappable      batteries; integrates with DJI Dock (Dock version) for fully autonomous,      24/7 operations if needed.
• Additional Features — Smart PinPoint, Live Mission Recording, AI-assisted flight      modes, three-propeller emergency landing, and Health Management System for      maximum uptime and data security.

Borch brings enterprise-level reliability and imaging power in a truly portable package—ideal for our regional clients in aerospace, defense, utilities, construction, and emergency services around Huntsville. All operations comply with FAA Part 107 and our robust safety protocols. Data is delivered in industry-standard formats with full post-processing support.

Ready to see "Borch" in action on your project? Contact Madison Drone Operations today for a consultation or demo flight in the Huntsville area.

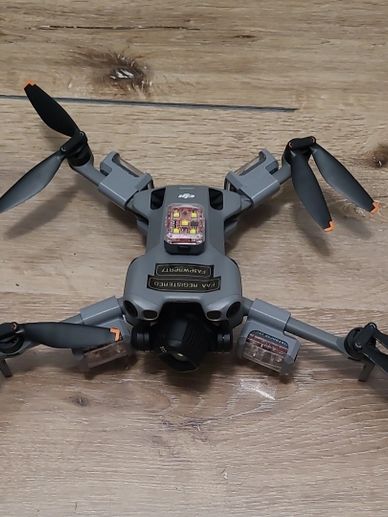

“Yennefer” is our very first DJI Mini 5 Pro drone and the pioneer that launched this powerful lightweight platform into the Madison Drone Operations fleet. As the original Mini 5 Pro in our lineup, she has the same specifications as Yarpen, delivering professional-grade 1-inch CMOS sensor imagery, omnidirectional obstacle sensing, and reliable performance in a compact, foldable package that weighs under 250 g. Ideal for quick deployments around Huntsville and across the Southeast, Harry excels in real estate showcases, event coverage, creative content, light inspections, and more—bringing speed, discretion, and stunning visuals to every mission without the bulk of larger drones.

Key Aircraft & Flight Performance Specs

• Real Estate & Property Marketing — Stunning aerial photos, cinematic 4K      videos, and vertical shots that make listings pop.
• Event Coverage & Creative Content — Fast-setup footage for weddings,      corporate events, festivals, marketing, and social media.
• Light Infrastructure & Roof Inspections — Safe, close-range visual      checks on buildings, solar panels, and accessible structures.
• Construction & Site Monitoring — Quick progress overviews and high-res imagery      for smaller projects.
• Precision Mapping & Small-Area Surveying — Detailed orthomosaics and 3D      models with excellent resolution.
• Agriculture, Tourism & Outreach — Crop scouting, location scouting, and      promotional aerials in tight or sensitive areas.

Smart features like ActiveTrack 360°, omnidirectional avoidance, and one-tap QuickShots ensure safe, efficient flights every time.

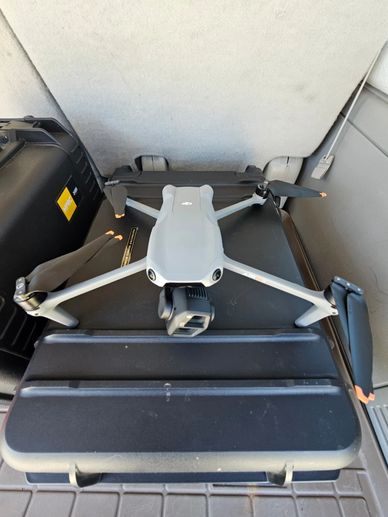

"Lambert" is our versatile dual-camera powerhouse and the newest addition to the Madison Drone Operations fleet. Featuring a groundbreaking 1-inch CMOS primary wide-angle camera paired with a 70 mm medium telephoto camera, Lambert delivers professional-grade imagery with exceptional dynamic range, low-light performance, and creative flexibility—all in a highly capable yet portable platform. With up to 45 minutes of flight time, Nightscape omnidirectional obstacle sensing (including forward LiDAR), 42 GB of internal storage, and O4 transmission up to 20 km, Lambert excels at capturing both sweeping landscapes and detailed close-ups in a single flight. It strikes the perfect balance between the ultra-portable Mini 5 Pro series and the heavy-lift enterprise Matrice 30T, making it ideal for high-quality real estate, events, content creation, light inspections, and more across Huntsville and the Southeast.

• Takeoff Weight: 724 g
• Dimensions: Folded (without propellers): 214.19 × 100.63 × 89.17 mm (L × W × H); Unfolded (without propellers): 266.11 × 325.47 × 106.00 mm (L × W × H)
• Max Flight Time: 45 minutes
• Max Hovering Time: 41 minutes
• Max Horizontal Speed: 21 m/s (no wind at sea level); up to 27 m/s with tailwind in controlled conditions (19 m/s in EU regions)
• Max Ascent / Descent Speed: 10 m/s
• Max Wind Resistance: 12 m/s
• Max Takeoff Altitude: 6,000 m
• Operating Temperature: -10 °C to 40 °C
• Positioning: GPS + Galileo + BeiDou with vision positioning for high accuracy (±0.1 m vertical / ±0.3 m horizontal with vision)
• Internal Storage: 42 GB (enables fast in-flight or post-flight transfer)
• Transmission: O4 video transmission system, up to 20 km (FCC)
• Obstacle Sensing: Nightscape omnidirectional sensing with forward-facing LiDAR, downward infrared ToF, and multi-directional vision—reliable even in low-light conditions (>1 lux with textured surfaces)
• Class: C1 (EU)

Lambert’s dual-camera setup provides unmatched versatility without swapping payloads:

• Primary Wide-Angle Camera: 1″ CMOS sensor, 50 MP effective pixels Lens: 84° FOV, 24 mm equivalent, f/1.8 aperture Stunning 50 MP stills (up to 8192 × 6144) and 4K/60 fps HDR video with up to 14 stops of dynamic rangeExcellent low-light performance, 10-bit D-Log M / HLG color modes, and support for 4K/120 fps slow-motion
• Medium Telephoto Camera: 1/1.3″ CMOS sensor, 48 MP effective pixels Lens: 35° FOV, 70 mm equivalent (≈3× optical zoom), f/2.8 aperture Matches the primary camera’s video specs and color science for seamless switching Ideal for portraits, architectural details, roof close-ups, and isolating subjects while maintaining high resolution

Both cameras support the same high-end video pipeline (H.264/H.265, up to 130 Mbps bitrate, vertical 2.7K shooting) and deliver consistent color and dynamic range. Additional pro features include Free Panorama for seamless wide scenes, FocusTrack intelligent subject tracking, and next-gen Smart RTH with enhanced precision. The Nightscape sensing suite and strong low-light capabilities make Lambert especially effective for evening or early-morning operations when paired with our anti-collision strobes.

Service Capabilities & Applications at Madison Drone Operations

We deploy Lambert for missions that benefit from dual-lens flexibility, long flight times, and outstanding image quality in one compact aircraft:

• Real Estate & Property Marketing — Wide establishing shots plus telephoto details of architectural features, landscaping, or interiors from exterior vantage points.
• Event Coverage & Creative Content — Dynamic 4K video with smooth transitions between wide scenes and intimate portraits or action details; perfect for weddings, corporate events, festivals, and marketing productions.
• Light Infrastructure & Roof Inspections — Tele camera excels at close-up assessment of hail damage, aging, flashing, or wear while the wide camera provides context—ideal follow-up or standalone work after major roof projects.
• Construction & Site Monitoring — Progress documentation, before/after comparisons, and detailed visual reports with the flexibility to zoom in on specific areas without flying dangerously close.
• Public Safety, Emergency Response & Night Operations — Reliable Nightscape sensing + long endurance for overwatch, search support, or documentation in lower-light conditions.
• Travel, Tourism & Lifestyle Content — Lightweight enough for quick deployment yet capable of cinematic landscapes, cityscapes, and travel storytelling with pro color grading. Lambert’s 42 GB internal storage and fast transfer workflow speed up client delivery, while the balanced size and performance make it our go-to “daily driver” for many mid-to-high-end photography and videography jobs.

Lambert brings flagship-level dual-camera versatility and low-light performance to a highly portable airframe with class-leading flight time and safety features. It fills the sweet spot in our fleet—more capable imaging and zoom than the Mini 5 Pro “Yarpen” and “Harry,” yet far more agile and cost-effective than the Matrice 30T for jobs that don’t require thermal or heavy-lift capability. Clients get right-tool-for-the-job efficiency, consistent professional results, and the peace of mind that comes from advanced night sensing and our full Part 107 / safety protocols.

Ready to capture versatile, high-impact aerial imagery with Lambert? Contact Madison Drone Operations today for a consultation or demo flight in the Huntsville area.
